Hydraulic Cylinder Manufacturing Capabilities

From concept to completion, Innovative Hydraulics delivers fully integrated manufacturing capabilities for custom hydraulic cylinders built to perform in the most demanding environments. We combine engineering expertise, precision machining, certified welding, controlled assembly, and rigorous testing to produce hydraulic solutions where reliability is critical and failure is not an option.

Engineering

Machining & Fabrication

Welding

Assembly

Testing

Quality & Certification

Engineering

Every project begins with a deep understanding of application demands. Our engineering team develops solutions tailored to load requirements, operating environments, and performance expectations. We support projects from initial concept through final production with a focus on durability, efficiency, and serviceability.

Capabilities Include:

  • Custom hydraulic cylinder design
  • Application and load analysis
  • Material and seal selection
  • CAD modeling and technical documentation
  • Design optimization for performance and manufacturability

Machining & Fabrication

Precision machining is at the core of every hydraulic cylinder we produce. Our facility is equipped to manufacture large-scale and high-tolerance components with consistency and accuracy. We specialize in machining critical components that must perform under extreme pressure and stress.

Key Capabilities:

  • CNC turning and milling
  • Large-diameter component machining
  • Tight-tolerance fabrication
  • Rod, barrel, and component manufacturing
  • Custom part fabrication for unique applications
Contact Us to learn more

Welding

Structural integrity starts with expert welding. Our certified welding processes ensure strength, durability, and long-term reliability in high-pressure hydraulic systems. We follow strict procedures to maintain consistency across every weldment.

Key Capabilities

  • MIG, TIG, and Submerged Arc Welding (SAW)
  • Pressure-retaining welds
  • Structural welding for large assemblies
  • Certified welding procedures and inspections
  • Weld quality verification and testing
Click Here to request info

Assembly

Controlled assembly processes ensure each hydraulic cylinder is built to exact specifications. Every component is carefully fitted, sealed, and verified to maintain performance and longevity. Our team follows standardized procedures to ensure consistency across all builds.

Key Capabilities

  • Precision component assembly
  • Seal installation and verification
  • Torque and alignment control
  • Clean assembly environments
  • Final system integration
Click Here to request info

Testing

We don’t guess—we validate. Every cylinder undergoes rigorous testing to confirm it performs as designed before leaving our facility. Our testing capabilities simulate real-world operating conditions to ensure reliability in the field.

Capabilities Include:

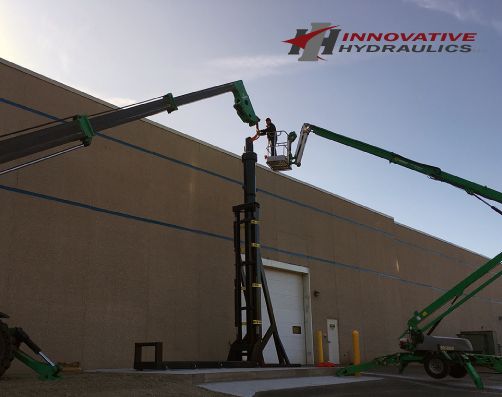

Testing a hydraulic cylinder Request more info →

Quality & Certifications

Quality is embedded in every step of our process. Our systems are guided by ISO 9001:2015 standards, ensuring traceability, consistency, and confidence in every product we deliver. We maintain strict inspection protocols to ensure every component meets specification before and after assembly.

Capabilities Include:

  • ISO 9001:2015 aligned quality system
  • Full material traceability
  • In-process and final inspections
  • Documentation and compliance reporting
  • Continuous improvement processes
Contact Us to learn more
